Space Weather Events in March 1989 and January 1997

This section illustrates space weather events using the unusually large and geoeffective events observed during the periods 6 - 19 March 1989 and 6 - 11 January 1997. These events contained some of the largest substorms on record. The news article by Allen et al. [1989] describes the 1989 events in detail, some of which is paraphrased and other parts supplemented here. The ISTP web site contains a more detailed discussion of the January 1997 events.

The March 1989 events were associated with a unusually large and complex sunspot group, active region 5395. Figure 15.3 [Allen et al., 1989] shows one of the first X-ray flares from this region,

  figure38

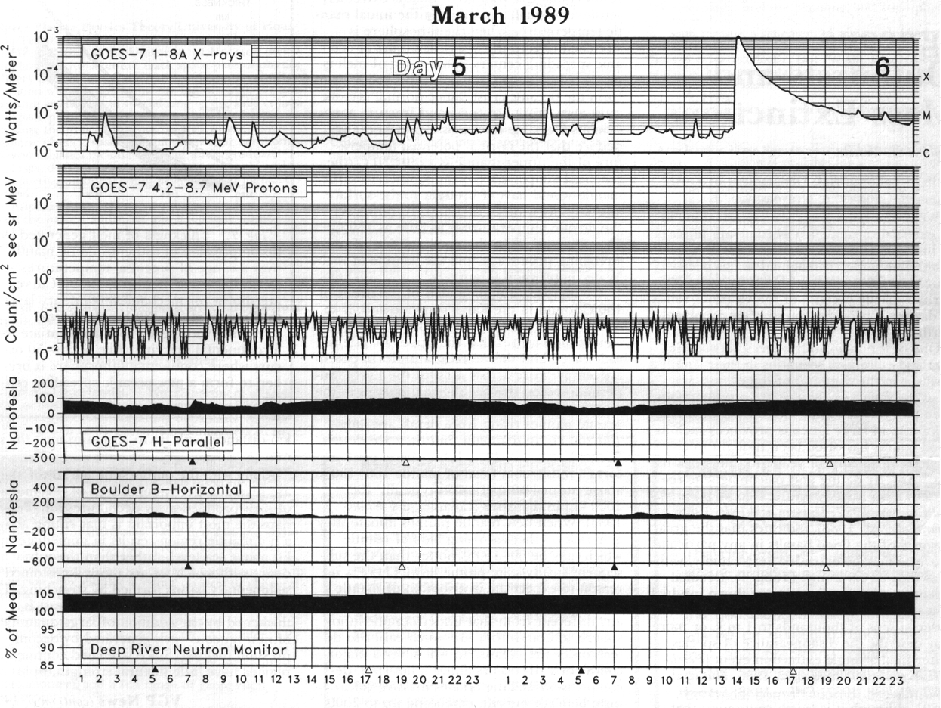

Figure 15.3: X-ray, energetic proton, and magnetic data from the GOES-7 spacecraft, the horizontal component of the magnetic field measured at Boulder, CO, USA, and the cosmic ray flux measured by the Deep River Neutron Monitor for the period 5 - 6 March, 1989 [Allen et al., 1989].

as well as the relatively high level of cosmic rays being detected at the Deep River Neutron Monitor which indicated a fairly constant but unusually high number of energetic solar particles reaching Earth. Figure 15.4 shows data from the available solar wind monitoring spacecraft (IMP 8), as well as the measures tex2html_wrap_inline330 and Kp for magnetospheric activity.

  figure43
Figure 15.4: Solar wind monitor data ( tex2html_wrap_inline332 , tex2html_wrap_inline334 , and tex2html_wrap_inline336 ) and geomagnetic activity indices Kp and tex2html_wrap_inline330 for the period 4 - 24 March 1989.

Note the arrival of a shock on 8 March, presumably associated with the X-ray flare on 6 March, and the associated small increase in tex2html_wrap_inline330 . This increase in tex2html_wrap_inline330 is probably a SSC/SI (sudden storm commencement / sudden impulse) due to compression of the magnetopause and the concomitant increase in the magnetic field of the magnetopuase current layer detectable on Earth's surface. The rise in Kp and the large, localized decrease in tex2html_wrap_inline330 near midnight on 13 March are described as geomagnetic activity related to a magnetic substorm.

Figure 15.5 [Allen et al., 1989] show solar and magnetospheric data for the period 13 - 14 March.

  figure53
Figure 15.5: Data for the period 13 -14 March 1989 in the same format as Figure 15.3 [Allen et al., 1989].

Note the huge increase in the level of MeV protons at geosynchronous orbit (GOES-7 data) - the increase is by 4 orders of magnitude relative to the level on 5-6 March. Numerous operational difficulties were reported for geosnchronous and low-orbit spacecraft during this period. The GOES-7 magnetometer data show negative values for the H-Parallel magnetic field component several times on 13 March, corresponding to the magnetopause being pushed Earthwards of the spacecraft and the resulting detection of Southwards tex2html_wrap_inline336 in the magnetosheath. SSCs associated with earlier compressions of the magnetopause are visible in the Boulder B-Horizontal data near 0128 and 0747 UT on March 13. Changes in the magnetospheric and ionospheric current systems cause the negtive decreases in the Boulder B-Horizontal field from about 1000 UT until the substorm itself starts near 2100 UT, as shown also in Figure 15.4's tex2html_wrap_inline330 data. This is the main phase of the substorm itself.

The changes in tex2html_wrap_inline330 itself and the substorm are associated with injections of energetic particles near geosynchronous orbit: Figure 15.6 shows the injection of energetic particles at two of Los Alamos's DMSP satellites, which tex2html_wrap_inline364 drift Earthwards and undergo tex2html_wrap_inline406 and curvature drifts around the Earth as they join the ring current.

  figure61
Figure 15.6: Count rates of energetic electrons versus time and energy from Los Alamos instruments on three geosynchronous spacecraft for 13 March, 1989. Note the strong injections near 2100 UT for two of the spacecraft.

During this period the count rates of energetic particles precipitating into the auroral ionosphere and equatorial ionosphere increased by several orders of magnitude, typically in bursts with lifetimes of order half a day and not inconsistent with the theoretical loss times for particles from the ring current. The aurorae during the period of the substorm were unusually intense, unusually large in area, and moved to unusually low magnetic latitudes. For instance, aurorae were observed above the topic of Capricorn in far northern Australia and in Arizona, USA. Figure 15.7 shows these results [Allen et al., 1989].

  figure65
Figure 15.7: Southern hemisphere auroral images taken by the Dynamics Explorer 1 (DE-1) spacecraft Allen et al. [1989]. At left is a quiet time auroral ring (22 March, 1983) and at right is the largest auroral zone recorded by DE-1 up to 1826 UT on 13 March 1989.

Perhaps the most important space weather effect of this period involved electric power failures due to intense auroral currents. The Hydro-Quebec Power Company experienced a massive power failure that darkened most of Quebec Province for nine hours and left over 6 million people without power and heat in their homes. Many people in more remote locations had no power for several weeks, even months. The failure occurred due to changing magnetic fields (due to substorm activity and associated auroral currents) inducing low frequency currents in power lines which saturated transformers and caused protective shutdowns that spread due to networking of the power grid. Similar, simultaneous (to within 1 second!) power losses occurred in central and southern Sweden. Power systems across much of the USA experienced difficulties but not widespread power outages.

Major effects on space systems were reported during this period [Allen et al., 1989]. These included communication anomalies and outages for GOES-7 and other satellities. Perhaps more important were greatly increased difficulties in maintaining spacecraft attitude, pointing, and orbits for both commercial and military spacecraft: these difficulties were due to increased and variable ionospheric drag and also to the effects of changing magnetic fields. SMM's orbit, for instance, is believed to have dropped about 5 km over this period while one series of seven commerical geostationary satellites required more than one normal year's number of manual operator attitude adjustments in just the period 13-14 March. At least one spacecraft experienced a major component failure during this period, potentially due to space weather effects.

Severe communication difficulties were also experienced [Allen et al., 1989]. For instance, the US Coastguard's LORAN navigation system encountered numerous problems, especially on 6 and 13 March, while the US Navy's high-frequency radio network was out worldwide. In addition, geophysical exploration teams found their instruments essentially unusable for extended periods and microchip production factories in the northeastern USA were not operational for two periods, both due to changing geomagnetic conditions.

Figure 15.8 shows the solar wind data for the January 1997 space weather event, identifying the CME's shock and rotating magnetic field, as well as a CIR.

  figure69
Figure 15.8: Solar wind data for the January 1997 storm period, as presented by L.F. Burlaga on the ISTP web site. The CME shock and cloud, plus a subsequent CIR, are clearly identified.

Note that the magnetic field has a strong southwards tex2html_wrap_inline336 component during the CME (magnetic cloud) itself. Figure 15.9 shows the tex2html_wrap_inline330 and tex2html_wrap_inline412 indices for the period.

  figure76
Figure 15.9: Geomagnetic activity indices tex2html_wrap_inline340 and tex2html_wrap_inline330 for the period 8 - 12 January 1997, obtained from the OmniWeb site.

A clear SSC is visible in tex2html_wrap_inline330 near about 0200 UT on 10 January, while the main decrease in tex2html_wrap_inline330 occurs over about the next 12 hours on that same day, followed by a slower recovery over another 24 hours. tex2html_wrap_inline376 started to increase prior to these changes in tex2html_wrap_inline330 . These increases in geomagnetic activity started (and continued) while tex2html_wrap_inline336 was southwards. The peak in tex2html_wrap_inline330 early on day 11 may be another SSC, this time associated with compression of the magnetosphere by the very dense ``filament''at the end of the CME.

Figure 15.10 presents more detailed data for this period, showing the rather complex and strongly time varying nature of much geomagnetic activity.

  figure87
Figure 15.10: Ground-based and spacecraft data showing different aspects of geomagnetic activity for the January 1997 space weather events: (top) ground-based Canopus magnetometer data showing the magnetic perturbations of the auroral electrojets as a proxy for AE, (second) energetic electron fluxes measured at geosynchronous orbit, showing discrete injections on day 10 and before as well as the increase in flux level due to enhanced solar fluxes, (third) ground-based SESAME magnetometer data, and (bottom) magnetometer data from the Wind spacecraft showing how these magnetospheric variations are associated with southwards tex2html_wrap_inline336

The figure shows magnetic field perturbations associated with the auroral oval and auroral electrojets (top panel), intense, time-localized injections of energetic electrons near geosynchronous orbit (second panel), perturbations in the magnetic field observed by the SESAME magnetometer chain (third panel), and the magnetic field observed in the solar wind by the Wind magnetometer (bottom panel). Note that the most intense activity occurs during and is part of the 10 January substorm. However, other, more localized disturbances occur during other times when tex2html_wrap_inline336 is southwards.

The aurorae during this storm covered an unusually large area, were unusually bright, and varied unusually quickly. Figure 15.11 shows these data.

  figure92
Figure 15.11: Auroral displays on 10 January 1997; The top-left image shows a quiet auroral oval before the storm. The top-right and bottom-left images are during the height of the storm, showing the auriral oval to have expanded, broadened and brightened greatly. The final image shows how quickly the auroral displays can disappear.

Before moving on to a general physical result, it is worth mentioning that the Telstar 401 satellite failed during this space weather event, possibly (but not certainly) due to radiation damage and dielectric charging. Space weather has also been responsible for several other satellite failures in the last few years, including the Galaxy 4 satellite whose loss led to most American pagers being unusable for about 1 day in either 1996 or 1997.

A necessary (but not sufficient) condition for geomagnetic activity to occur is that tex2html_wrap_inline434 be southwards for at least a 30 - 60 minute interval prior to an event. This is shown conclusively, in a statistical sense at least, in Figure 15.12 [Muruyama et al., 1980].

  figure97
Figure 15.12: Dependence of the AL index for substorm magnetic activity on tex2html_wrap_inline332 and tex2html_wrap_inline336 [Muruyama et al., 1980; McPherron, 1995]. The abscissa is the value of AL normalized by tex2html_wrap_inline350 , while the ordinate is either the hourly average of tex2html_wrap_inline336 when tex2html_wrap_inline354 or else a duration-weighted value of tex2html_wrap_inline336 called tex2html_wrap_inline358 for tex2html_wrap_inline360 . Statistically, substorm activity is clearly associated with long duration and/or large values of southward tex2html_wrap_inline336 .
